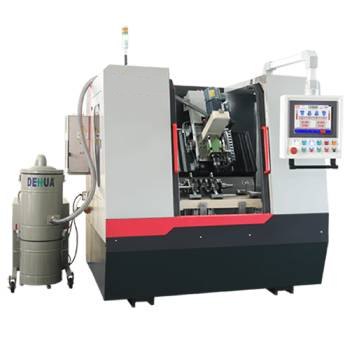

Crankshaft Automatic Balancing Correction Machines

Home/ Marketing Products/ Balancing Machines /Crankshaft Automatic Balancing Correction Machines

Generator Rotor Automatic Balancing Machines


Load and unload by manual.

15' touch screen.

Advanced balance software.

Automatic measuringdrilling correction and retesting.

Workpieces can do two and more times removing weight and corrections.

High precision soft bearing measuring system.

Rigid machine tool structure design.with longer using time.

The machine is widely used in four and six cylinder crankshaft balancing correction.

Technical Specification

Crankshaft Automatic Balancing Correction Machine

Balancing Unit Parameter
Max Mass of Workpiece(kg) 30
Max Length of Workpiece (mm) 600 (Four Cylinder)/800 (Six Cylinder)
Max Diameter of Workpiece (mm) 150 (Four Cylinder)/200 (Six Cylinder)
The Distance Between Two Bearing Pedestals(mm) 400
Journal Diameter on Roller Carriages(mm) 35-60
Max Balancing Speed(r/min) 1000
Motor Power(kw) 1.5
Min Achievable Residual Unbalance Amount ( 5
Drilling Unit
Drilling Speed(r/min) 1500
Cutting Spindle Motor Power(kw) 0.75
Max Allowed Correct Times 2
Machine Parameter
Machine Motor Power(kw) 8
Machine Weight(ton) 3.5
Dimensions(mm) 2000*1800*2200
Pressure(Mpa) 0.4-0.8
Takt Time(s) 150-180
