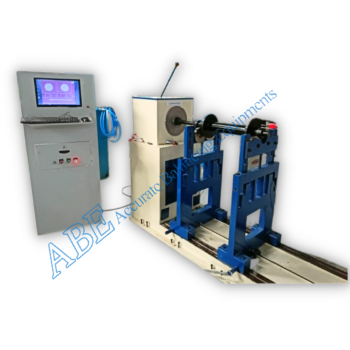

End Drive Horizontal Balancing Machines

Home/ Marketing Products/ Balancing Machines/

Features

These types of machines are ideally suited for large rotors, often with high inertia and where high power is consumed due to air resistance etc. Drive options include single and multiple speeds through pulley arrangements, gear boxes or AC frequency variable speed drives. Gap bed machines are available for bigger diameter rotors.

End driven machines also lend themselves to high speed balancing applications in conjunction with safety enclosures. Furthermore the positive drive arrangement through Universal coupling assures the rotor does not lift off the pedestals during running due to high centrifugal forces.

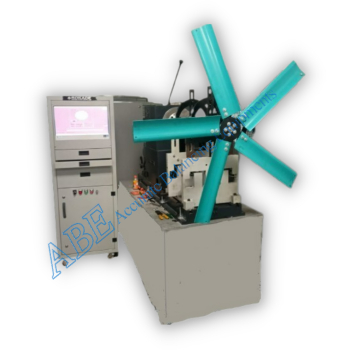

With our experience spanning nearly three decades, our most commonly served applications for end driven machines include but are not limited to: Blowers, Impellers, Motor rotors, Paper machine rolls, Centrifuges, Crushers, Turbine rotors, Pulleys, Hubs, Crankshafts, Armatures, Fans, Compressors, Etc.

Technical Specification

Machine Model H 50 H 100 H 300 H 650 H 1K H 3K H 5K H 10K H 16K H 30K
Weight Capacity KG 50 100 300 650 1000 3000 5000 10000 16000 30000
Max Diameter of Rotor (mm) 500 1000 1150 1350 1600 2100 2500 3000 3500 4000
Std. Bed Length - S (mm) 800 1200 1500 1500 1500 2000 2500 3000 4500 4500
Std. Bed Length - M (mm) 1200 1500 2000 2000 2000 2500 3000 4500 6000 6000
Std. Bed Length - L (mm) 2000 2000 2500 2500 2500 3500 4500 6000 7500 7500
Journal Dia Range (mm) 8~50 10~80 12~100 15~120 15~120 25~180 25~250 40~250 70~350 70~350
